Description

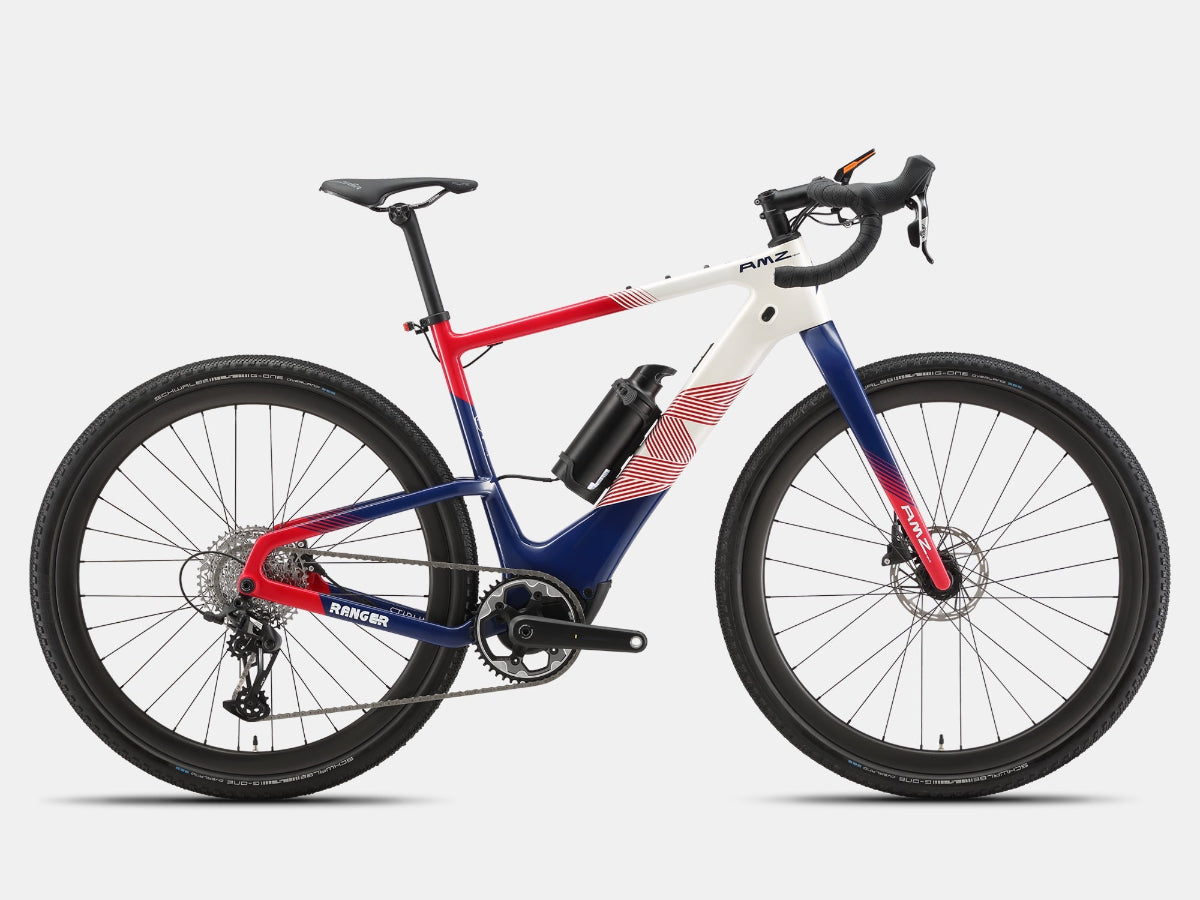

gravel bike 1200 Ranger GRX Electric Gravel Bike – AMZcyclePerformance Table E bike Class Class 1 Usage Scenario Long distance Road Riding Applicable height 5'6"6'5" Weight 37. 3 lbs Voltage 36V Charging Time 68 hours Maximum Load 265 lbs Battery Capacity 378 Wh + 252 Wh (Optional) Total: 630 Wh Motor Power 250Wpeak350W Max Pedelec Range 5062 miles + 3137 miles Total up to ~99 miles Max Pedelec Speed 20 mph Specification Table Frame Set Full Carbon Fiber Frame; 70050C; 14212mm Axle; UDH; FICR; Dual Battery
Performance Table
| E-bike Class | Class 1 |
| Usage Scenario | Long-distance Road Riding |
| Applicable height | 5'6"–6'5" |
| Weight | 37.3 lbs |
| Voltage | 36V |
| Charging Time | 6–8 hours |
| Maximum Load | 265 lbs |
| Battery Capacity | 378 Wh + 252 Wh (Optional) → Total: 630 Wh |
| Motor Power | 250W(peak:350W) |
| Max Pedelec Range | 50–62 miles + 31–37 miles → Total up to ~99 miles |
| Max Pedelec Speed | 20 mph |
Specification Table
| Frame Set | Full Carbon Fiber Frame; 700×50C; 142×12mm Axle; UDH; FICR; Dual Battery System; Flat Mount Brake |
| Headset | FICR; 51.8×8.7mm–51.8×6.8mm Bearing |
| Fork | SUNTOUR GVX32; Travel: 50mm (2.0"); 700C; 12×100mm Axle; Air Spring |
| Motor | BaFang M82036; 250W; 75N·m |
| Battery | Samsung 18650 Cell; 36V 10.5Ah; 378Wh; UL2271; DC2.1; IPX5 |
| Secondary Battery | Samsung 18650 Cell; 36V 7Ah; 252Wh; UL2271; DC2.1; IPX5 |
| Controller | BaFang M820; 36V |
| Display | BaFang; 2.4 inch |
| Headlight | LED; 12V 0.3A (3.5W) |
| Taillight | LED; 12V 0.025A (0.3W) |
| Speed Sensor | BaFang SR S02 |
| Dual Control Lever | NA |
| Front Brake | Shimano RX820; 2 Piston; FM |
| Rear Brake | Shimano RX820; 2 Piston; FM |
| Front Disc | Shimano SM-RT70; 160mm (6.3"); 1.8mm; Centerlock |
| Rear Disc | Shimano SM-RT70; 160mm (6.3"); 1.8mm; Centerlock |
| Shifter | Shimano RX820; 1×12s; HD; Drop Post Controller |
| Rear Derailleur | Shimano RX822; 1×12s |
| Chainring | BaFang G532; 44T; CL49 |
| Crankarm | Samox; 175mm (6.9"); Carbon Fiber Crankarm |
| Chain | Shimano M6100; 12s |
| Cassette | Shimano M8100; 12s; 10–51T |
| Handlebar | Controltech; AL6061; Width: 420–484mm (16.5–19.1"); Sidesweep: 16°; Reach (W1): 464–504mm (18.3–19.8") |
| Stem | AL6061; Extension: 80mm (3.1"); Angle: -7°; Clamp: 31.8mm; Steerer: 28.6mm; Height: 40mm (1.6") |
| Saddle | Selle Italian FLITE; 233g; 145×248mm (5.7×9.8") |
| Pedal | 104.7×108mm (4.1×4.3"); ZP Bearing |
| Dropper Post | KS Rage IS; 27.2mm; 65mm Travel (2.6") |
| Dropper Post Controller | ST-R610 |
| Rims | WTB ST i23; 28H; 14G (Front); WTB ST i23; 32H; 14G (Rear) |
| Front Hubs | 12×100mm; 28H; 14G; E-bike Reinforced |
| Rear Hubs | 12×142mm; 32H; 14G; E-bike Reinforced |
| Spokes | 14G |
| Nipples | 14G; 14mm |
| Tubes | Kenda 700×50C; FV48mm |
| Tires | Schwalbe G-One Overland 365; 700×50C (29×2.0") |
